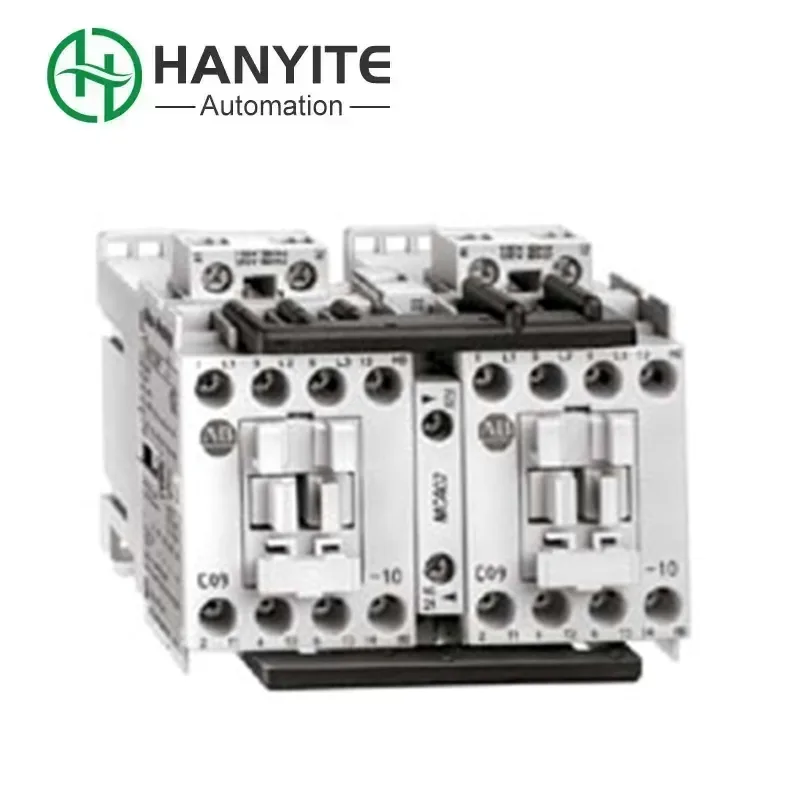

Allen Bradley 104-C23D22

Allen Bradley 104-C23D22 Specifications

Brand and Model:Allen Bradley 104-C23D22, part of the Reversing Contactor series. In China, Hanyite has enjoyed significant sales and positive customer feedback. Hanyite has a particularly strong customer base in Europe and the United States, particularly in India, Southeast Asia, the Middle East, Russia, and other countries. Hanyite offers high-quality products and first-class service. With established supply and sales channels and a strong team of professionals, we are committed to providing the highest quality service to our customers anytime, anywhere. As a safety contactor, the 104-C23D22 can be used for emergency stop control of hazardous motion equipment, such as CNC machine tools, packaging machinery, and conveyor systems. Its mechanically linked or mirrored contact design provides reliable feedback of circuit status, ensuring rapid power interruption in the event of a fault, and complies with safety standards such as EN ISO 13849.

Current Type: AC (Alternating Current), Power Rating: 15 hp (Horsepower), Mounting Method: DIN Rail Mount, Maximum Current: 32 A, Phases: 3-Phase, Coil Voltage: 120 V, Product Series: Series D

The 104-C23D22 belongs to the Bulletin 100S/104S IEC Safety Contactor series, designed for modern safety applications. It features mechanically linked or mirrored contact performance, supports current requirements up to 750 A, and is suitable for safe isolation of feedback circuits. Hanyite customers have received excellent feedback on this product. The following is a detailed description of its core specifications and features:

Core Electrical and Mechanical Parameters

Q: What are the selection and application considerations?

A:Load Matching: The coil model should be selected based on the rated current (≤23A) and power supply type (AC/DC) of the controlled device (e.g., the 104-C23D22 is a DC coil version).

Mounting Compatibility: It features DIN rail mounting, suitable for compact control cabinet layouts. It can be combined with Allen-Bradley 100S series auxiliary contact modules for expanded functionality, greatly enhancing user convenience and efficiency.

Spare Parts and Maintenance: As a mature series, the 104-C23D22 shares some spare parts with models in the same series (such as the 104-C23EJ22 and 104-C23F22), reducing long-term maintenance costs. Hanyite also offers products such as the 104-C37D22 and 104-C09D22 to meet customer needs. For purchasing, please contact Hanyite China. We provide 24-hour consulting services.
