The Allen Bradley 1734-RTBS recommended by Hannit is the base for Rockwell Automation's 1734 series PLC modules. It is mainly used for fixing and connecting PLC modules and supports signal transmission in industrial control scenarios. This base is compatible with digital I/O modules and offers 24 inputs /16 outputs. The operating temperature range is -10℃ to +70℃ (wide temperature version: -40℃ to +85℃), and the dimensions are 132mm×105mm×52mm. This product is specially designed for the integration of industrial automation PLC systems and needs to be used in conjunction with modules of the same series (such as the 1734-MB base).
| Compatibility type | Specific requirements | Example module/protocol |
|---|---|---|
| System Platform | It must be a ControlLogix series PLC main unit. | 1756 Series Controller |
| Communication Protocol | A corresponding communication module is required. | ControlNet、DeviceNet、EtherNet/IP |
| power supply | DC 5V digital power is provided by the PLC host. | Compliant with ControlLogix power standards |
| Expansion Accessories | Supports multi-module stacking with supporting basic modules. | 1734-MB18 (Basic Version) |
Technicians first examine the abnormal phenomena of Allen Bradley 1734-RTBS (for example, abnormal noise, indicator light status), verify the power supply and connection, and check for physical damage. For software-controlled devices, use diagnostic tools to monitor program status and error logs. For electrical equipment, use a multimeter to test the connectivity of the circuit. Replace the suspected faulty components with those that are functioning properly. Gradually disconnect the modules to identify the problem, then repair or replace the faulty components. Be sure to back up the data before operation. After the repair, verify whether the function is normal to prevent data loss.
| Fault type | Common symptoms | Tools/Methods | Preventive measures |
|---|---|---|---|
| Mechanical failure | Lag, abnormal noise, abnormal vibration | Observation (appearance/sound), touch (temperature/vibration) | Prioritize inspecting bearings, seals, and other easily worn parts. |
| Electrical fault | Unable to start, indicator light not on | Multimeter for checking power supply and component connectivity | Please disconnect the power before operation to avoid short circuits. |
| Software malfunction | Program crashed, data error | Log analysis, system update/repair | Back up your data in advance to prevent loss. |
When you purchase Allen Bradley 1734-RTBS from us, our sales or technical staff will proactively check your invoice. If we find that you haven't ordered the terminal base, we will promptly remind you. This service helps you avoid huge losses caused by the absence of a small component, which could bring the entire project to a standstill.
|
Model Number |

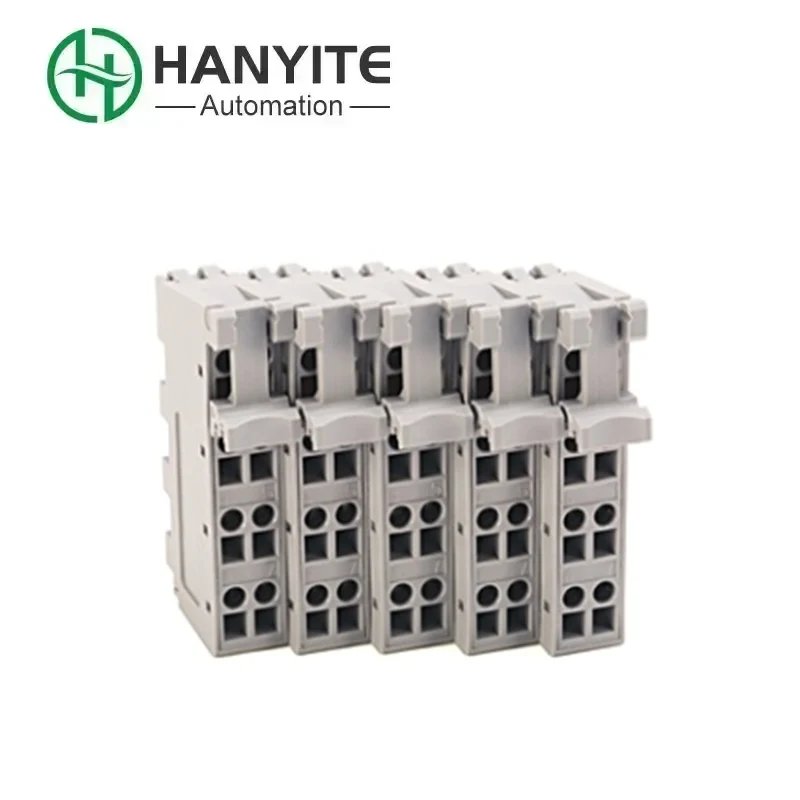

Allen Bradley 1734-RTBS |
|
Product Series |
POINT I/O |
|
Product Type |
Removable Terminal Base (RTB) |
|
Number of Positions |
8 |
|
Terminal Type |
Spring-clamp (Push-in) |
|
Wire Size |
0.25…2.5 mm² (23…13 AWG), solid or stranded |
|
Wire Insulation Max Thickness |
1.2 mm (3/64 in.) |
|
Wire Temperature Rating |
Minimum 75°C (167°F) |
|
Mounting |
DIN Rail |
|
Dimensions (H x W x D) |
Approx. 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Weight |
Approx. 36.9 g (1.3 oz) |
|
Wiring Category |
2 (Signal), 1 (Power) |
|
Certifications |
UL listed (as per distributor listings) |
