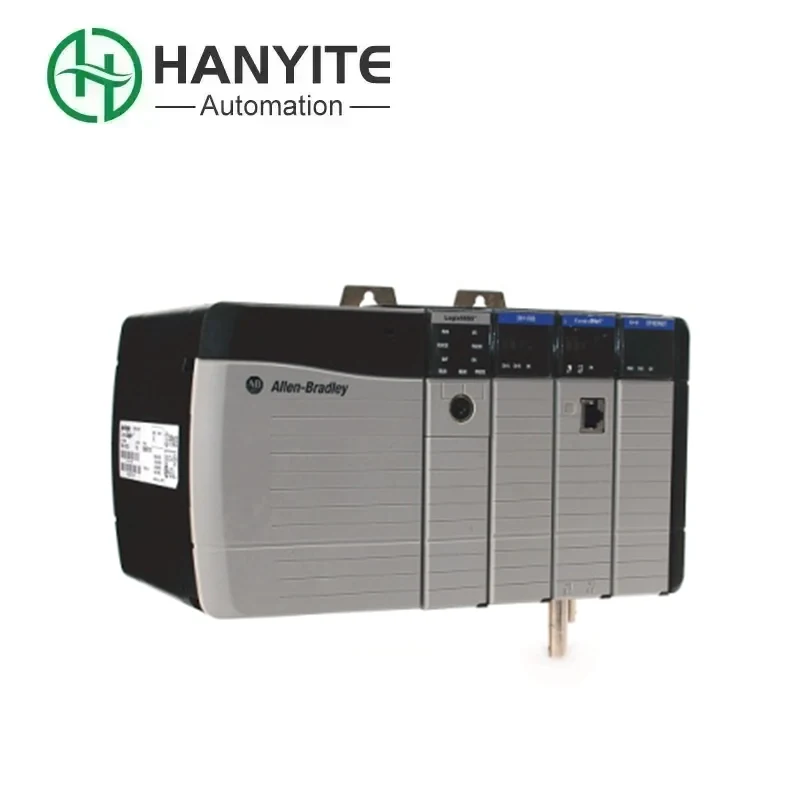

The Allen Bradley 1756-A4 recommended by Hanyite Company belongs to the Allen-Bradley ControlLogix series, manufactured by Rockwell Automation. As a rack module in industrial electrical equipment, it is used to install and connect PLC modules, serving as a basic framework. It is an excellent assistant for enterprise production and has been highly praised by a wide range of users.
The performance parameters of Allen Bradley 1756-A4 are characterized by a 4-slot rack. Four slots determine the maximum number of expandable modules. Horizontal installation and convection cooling methods are suitable for small control system scenarios with relatively limited space and average heat dissipation conditions. It is widely used in the production and operation of various large-scale machinery, with stable performance and convenient operation. It is a reliable assistant for your enterprise's production.
|
Item |
Specification |
|---|---|
| Model |
Allen Bradley 1756-A4 |
| Number of Slots | 4 |
| Dissipated Power (Maximum) | 4 Watts |
| Installation Method | Horizontal Installation |
|
External Dimensions |
20x20x8 Inches |
| Weight | 1.7 Pounds (Approximately 0.75 Kilograms) |
| Backplane Current (5V DC) | 10 Amperes |
| Backplane Current (24V DC) | 2.8 Amperes |
| Available Series | Series A, B, C |
| Configuration Software | RSLogix5000; Studio 5000 Logix Designer |
| Parameter Category | Performance Parameters |
|---|---|
| Number of Slots | 4 in total, used for installing controllers, I/O modules and other components. |
| Installation Method | Only supports horizontal installation; technicians should pay special attention. |
| Cooling Method | Adopts convection cooling, dissipating heat for the module through natural air flow. |
| Examples of Compatible Controllers | Can be matched with ControlLogix series controllers such as 1756-L61 and 1756-L64. |
The performance parameters of Allen Bradley 1756-A4 are characterized by a 4-slot rack. Four slots determine the maximum number of expandable modules. Horizontal installation and convection cooling methods are suitable for small control system scenarios with relatively limited space and average heat dissipation conditions.It is applied in the production and operation of various large-scale machinery, with stable performance and convenient operation.
| Fault Phenomenon | Possible Causes | Troubleshooting Measures |
|---|---|---|
| Module Unresponsive | Power failure, communication interruption | Check the power supply voltage, reinsert the module, and inspect the communication cables. |
| Abnormal Flashing of Indicator Light | Internal logic error, overheating | Restart the controller, check the module temperature, and update the firmware. |
| Slot Recognition Failure | Poor backplane contact, module damage |
Try cleaning the connectors, test with a replacement slot, and inspect the module hardware. |
