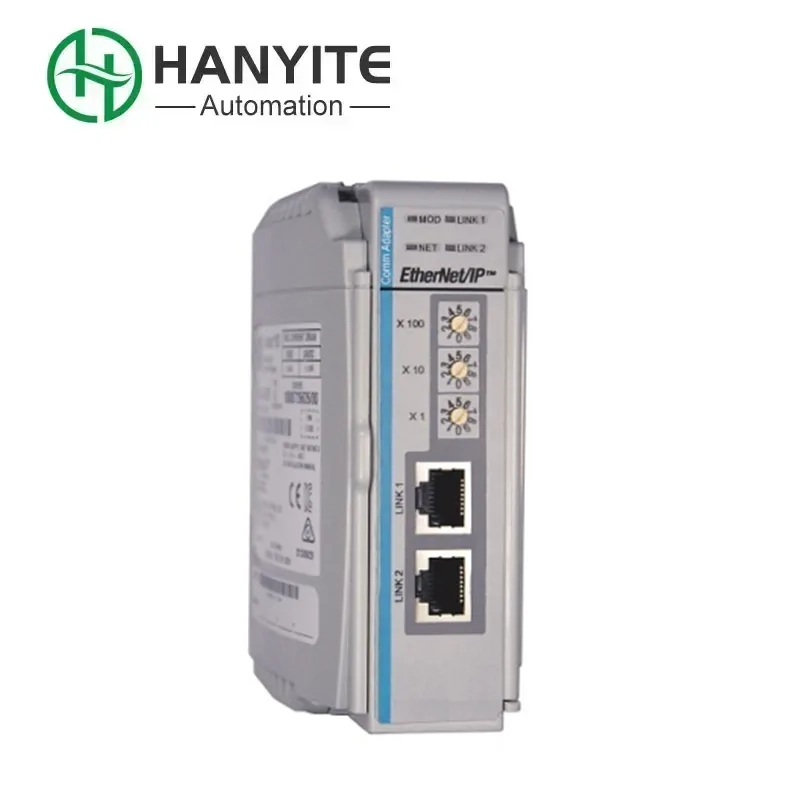

Allen Bradley 1769-AENTR is a communication module from the CompactLogix series. Its main function is to provide EtherNet/IP network connection and dual Ethernet ports, which makes it an ideal choice for communication expansion between devices in industrial automation control systems. Its dimensions are 22*14(the unit is not specified, but it is estimated to be centimeters), the working voltage is 5-24V, and the weight is approximately 2.68kg. This product made its debut in 2010. Hanyite has achieved satisfactory sales performance in the Chinese market and received wide acclaim. We offer first-class service and high-quality products. We are committed to providing the best service anytime and anywhere, relying on a complete supply and sales channel as well as a talented team.
Allen Bradley 1769-AENTR, as an industrial-grade Ethernet /IP module, is mainly used in the field of industrial automation and is suitable for manufacturing production lines and process control scenarios. This module is used to expand the Ethernet communication in the CompactLogix system, enabling data exchange and remote control between the PLC and other devices, such as human-machine interfaces, servo drives, and frequency converters.
|
Model Number |
Allen Bradley 1769-AENTR |
|
Product Series |
CompactLogix (1769 I/O) |
|
Product Type |
EtherNet/IP Communication Adapter |
|
Communication Ports |
2 x RJ-45 10/100 Mbps Ethernet Ports |
|
Network Topology Support |
Linear, Star, and Device Level Ring (DLR) |
|
Supported Protocols |
EtherNet/IP, CIP Sync, CIP Safety |
|
Power Supply |
Powered by 1769 I/O Backplane |
|
Backplane Current Draw |
5V DC: 300 mA (typical) |
|
Module Support |
Supports up to 30 local 1769 I/O modules |
|
Status Indicators (LEDs) |
MOD, NET, RUN, FAULT, LINK, ACT (x2) |
|
Dimensions (H x W x D) |
87 mm x 70 mm x 87 mm (3.43 in. x 2.76 in. x 3.43 in.) |
|
Weight |
0.19 kg (0.42 lbs) |
|
Certifications |
CE, C-UL-us, RCM, KC, UKCA |
Allen Bradley 1769-AENTR is capable of sending the field data collected by the I/O module to the PLC in real time via Ethernet without delay, and at the same time, it should also be able to convey the instructions of the PLC to the I/O module quickly. Especially its loop (DLR) function, when the network cable at a certain point in the network is disconnected, the data will be transmitted in a detour from the other direction, ensuring that the communication is not interrupted. This performance is crucial in many critical applications.
