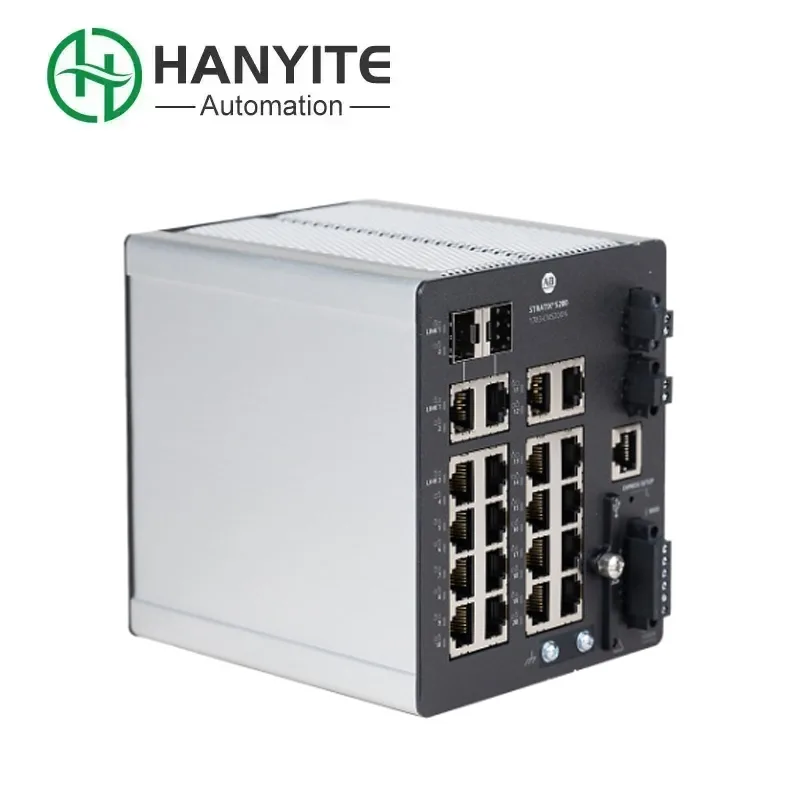

In China, Hanyite provides the fastest and best service for our customers. The Allen Bradley 1783-CMS20DP is a Stratix series Ethernet I/P managed switch, designed for building highly secure and resilient industrial network architectures. This switch features 10 Ethernet ports, including 8 Fast Ethernet (FE) copper ports and 2 Gigabit Ethernet (GE) combo ports. It supports fiber optic connections via SFP transceivers, making it suitable for multi-layer network deployments in industrial environments. Hanyite has achieved significant sales and positive customer reviews, particularly in Europe and the United States.
Power Supply and Power Consumption: Powered by an external 24V DC power supply, the switch typically consumes 15 watts (@24VDC/40°C) and can reach a maximum of 20 watts.
Physical Dimensions and Weight: Measuring 5.1 x 3.6 x 5.345 inches and weighing approximately 3.05 pounds, the switch is compact and suitable for installation in industrial control cabinets. Port Configuration: 8 RJ-45 copper ports (supporting Fast Ethernet), 2 Gigabit combo ports (compatible with copper and fiber cables, requires SFP modules)
Ethernet Connection: RJ45 connectors complying with IEC 60603-7 and Category 5e or higher cable (2- or 4-pair twisted pair) complying with TIA 568-B.1 are recommended.
Relay Termination: Signal wires must be 0.5-0.8 mm² (20-18 AWG). UL/CSA-certified AWM 1007 or 1569 twisted-pair cable with an insulation rating of ≥75°C is recommended.
Configuration Storage: Configuration files can be saved via a 1784-SD1 memory card, allowing for quick recovery of settings during device replacement.
Certifications and Compliance: Complies with multiple industry standards, including UL, CSA, and CCC, making it suitable for industrial environments in North America and China. Hanyite provides you with high-quality supply and first-class service. Application Scenarios and Advantages
Industrial Network Construction: Supports highly resilient topologies (such as ring network redundancy), improving the fault resistance of production line networks.
Multi-Media Expansion: Enables fiber-optic transmission via SFP modules, meeting long-distance, interference-resistant industrial communication requirements.
Convenient Configuration: Supports SD card configuration backup, reducing device maintenance downtime and making it suitable for large-scale deployments. NAS Storage Device
