Allen Bradley 440L-P4K1760YD

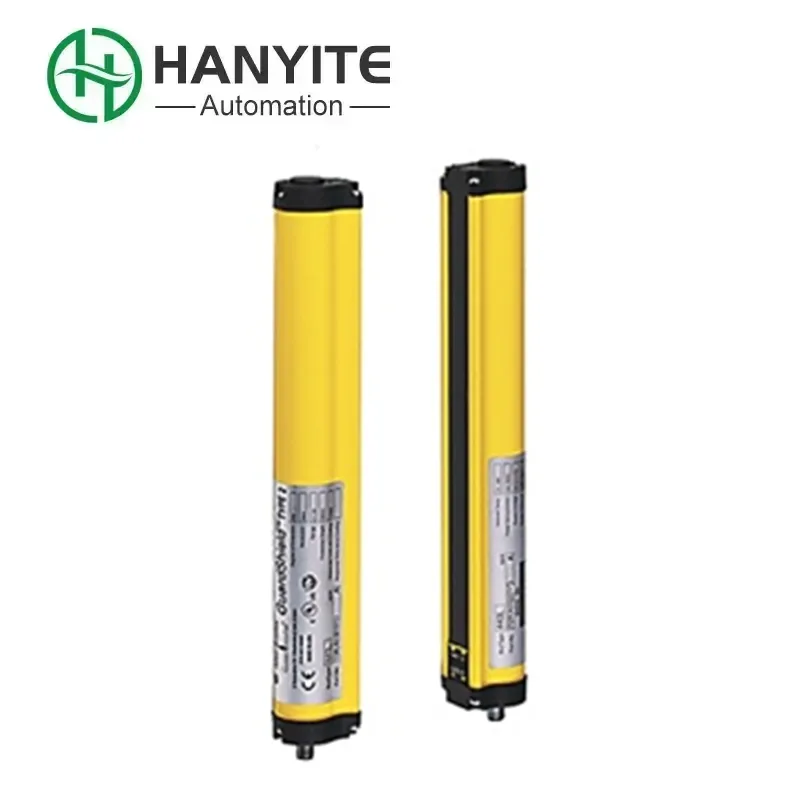

Allen Bradley 440L-P4K1760YD Safety Light Curtain Product Overview

The Allen Bradley 440L-P4K1760YD is a safety light curtain from the Guardmaster GuardShield series. It features a Type 4 safety rating (self-monitoring functionality in compliance with EN 61496) and is suitable for hazardous area protection in industrial environments. This accessory, provided by Hanyite, uses an infrared beam to create a protective zone. Blockage of the beam triggers a safety shutdown, making it widely used for personnel protection in machining, automated production lines, and other applications. Hanyite has achieved significant sales in China and received widespread acclaim. Hanyite has a particularly strong customer base in countries like India, Southeast Asia, the Middle East, and Russia, particularly in Europe and the United States. Hanyite offers high-quality products and first-class service. With established supply and sales channels and a strong team of talented individuals, we are committed to providing the highest quality service to our customers at all times.

440L-P4K1760YD Core Technical Specifications

Protection Performance: Safety Class 4, compliant with EN 61496 standards. Supports 14mm and 30mm resolutions, corresponding to detection ranges of 0.3-7m and 0.3-18m, respectively. This provides enhanced user safety.

Environmental Adaptability: Operating Temperature -10°C to 55°C, Storage Temperature -25°C to 75°C, Humidity 15%-95% (non-condensing), IP65 Protection Rating. This ensures a longer lifespan for the accessory.

Electrical Specifications: Supply Voltage 24VDC, Maximum Power Consumption 0.9-2A (no-load), 2x PNP Safety Outputs (0.5A, short-circuit proof), 1x PNP Non-Safety Output (0.5A).

Structural Design: Transmitter with a 4-pin micro QD connector, receiver with an 8-pin micro QD connector. Housing constructed of extruded aluminum with a polyurethane powder coating for torsional rigidity.

Core Technical Specifications

Safety and Certifications

Safety Level: Type 4 (Self-Detection), Compliant with EN 61496

Certifications: TUV, CE, Compliant with UL 61496 and UL 1998

Q: What are the optical and detection performance?

A:Electrical and Interfaces

Power Input: 24VDC, 5VSS

Current Draw: 0.9-2A (no-load), 0.4A (maximum) (operating)

Output Signal: 2 PNP outputs (0.5A, short-circuit proof), 1 PNP auxiliary output (0.5A max)

Connectivity: Transmitter 4-pin micro QD connector, Receiver 8-pin micro QD connector

Q: What are the environmental and mechanical specifications?

A: Operating Temperature: -10°C to 55°C (14°F to 131°F)

Storage Temperature: -25°C to 75°C (-13°F to 167°F)

Humidity Range: 15%-95% (non-condensing)

Case Material: Die-cast aluminum with polyurethane powder coating, torsion-resistant design for enhanced durability.

Interference Immunity: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-29 (shock) standards, providing enhanced user comfort.

Functions and Configurations

Operating Modes (DIP Switch Selectable)

Fixed and Floating Blanking: Allows beam obstruction to be ignored in specific areas, accommodating irregular workpiece movement.

Start/Restart Interlock: Prevents accidental device startup and requires a manual reset trigger.

External Device Monitoring (EDM): Monitors the status of external safety devices to ensure system integrity.

Beam Coding: Enhances interference immunity, preventing cross-interference between multiple light curtains, significantly improving performance in a wide range of work environments.

Machine Test Signal: Supports online functional testing without interrupting production.

Q: What are the application scenarios?

A: As a presence sensing safety device, it is primarily used for personnel access protection in hazardous areas, such as guarding high-risk machinery like stamping equipment, automated production lines, and robotic workstations. It provides safety and efficiency improvements.

Model Correlation and Notes

Similar Models: The same series includes the 440L-R4K1760YD (driver board/industrial control spare parts) and the 440L-F4J1600YD. Please note the functional differences (e.g., driver board, safety light curtain, circuit breaker, etc.).

Selection Tip: Confirm the specific model based on the protective height, resolution, and interface type to avoid confusion with other products in the same series (e.g., servo drives, motor protectors, etc.). If you have any questions or concerns, please feel free to contact Hanyite China. We provide 24-hour consulting services.
