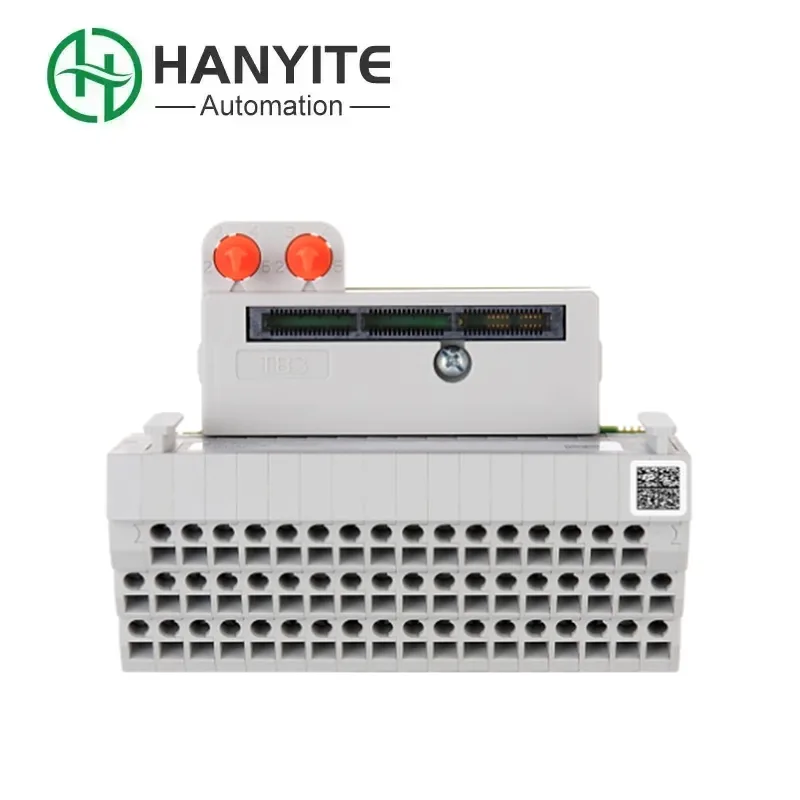

Allen Bradley 5094-RTB3

The Allen Bradley 5094-RTB3 series is a removable base for FLEX 5000 series I/O modules. It is primarily used in control systems such as CompactLogix and ControlLogix, providing connectivity between field devices and controllers. The series includes multiple sub-models to meet diverse I/O configuration and installation requirements.

Allen Bradley 5094-RTB3 Main Models and Specifications

Core Model and Functional Differences

The 5094-RTB3 series bases offer a variety of models, with some sub-models supporting distributed I/O expansion, high-speed backplane communication, and safety certifications. These are as follows:

5094-RTB3: A basic removable base suitable for connecting standard I/O modules.

5094-RTB3T/RTB3W: Distributed I/O supporting EtherNet/IP networks, compatible with controllers such as the CompactLogix 5380 and ControlLogix 5580. Some models feature an integrated 1Gb embedded switch and support linear or device-level ring topologies.

5094-RTB3IT/RTB3S: Features field-side power distribution, providing independent system power to I/O modules and enhanced electrical isolation. Suitable for modules such as high-speed counters and analog input/output. Extended models, such as the RTB3TS and RTB3WXT, are identified by the suffixes "XT" and "S" to indicate whether they support safety I/O or an extended temperature range.

Operating voltage: 220V AC; UPS (uninterruptible power supply)

Please purchase from Hanyite Automation Technology (China). We are dedicated to serving you wholeheartedly.
