Siemens 6ES7131-6BF00-0CA0

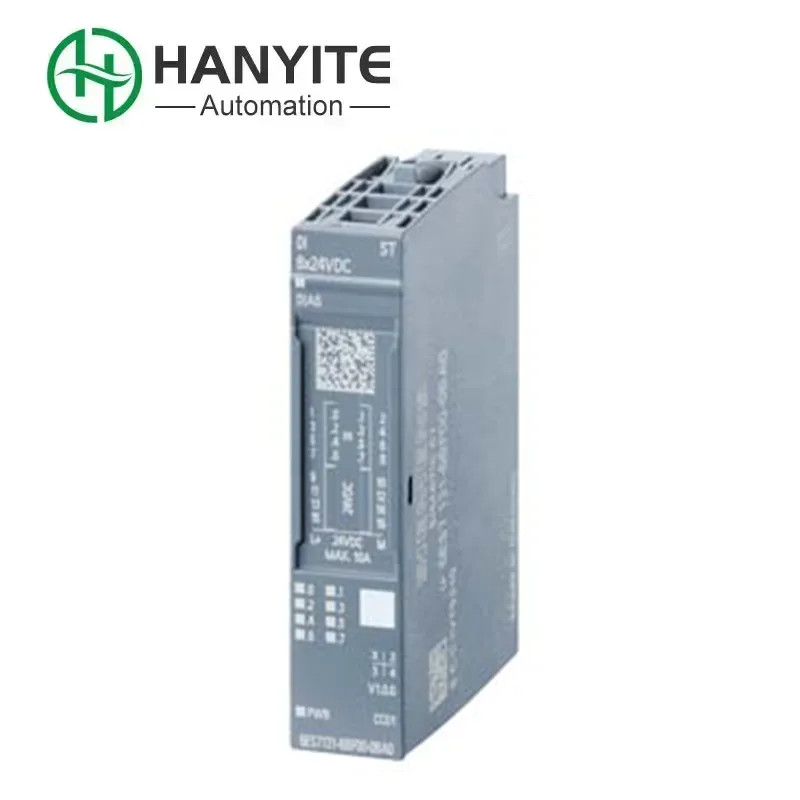

Siemens 6ES7131-6BF00-0CA0  is the Siemens SIMATIC ET 200SP series digital input module with the following core features and application information:

‌Technical Parameters‌

‌Channel Configuration‌: 8-channel 24V DC input, supporting PNP/NPN-compatible sink input mode.

‌Diagnostic Function‌: Includes sensor power supply short-circuit detection, wiring break detection, power supply voltage monitoring, and channel fault LED indication‌.

‌Response Time‌: Adjustable input delay range of 0.05~20ms, suitable for high-speed signal acquisition scenarios‌.

‌Compatibility‌: Compatible with A0-type base units, color code CC01‌12.

‌Application Scenarios‌

‌Industrial Automation‌: Widely used in manufacturing line control, energy equipment monitoring, and logistics automation systems‌。

‌Advantageous Case‌: In automotive manufacturing, this module reduces production line downtime by 50% through rapid fault localization‌5.

‌Scalability‌: Supports hot-swappable design, facilitating maintenance without affecting system operation‌.

Key Specifications of ET200SP DI 8x24V DC HF Module:

‌Model‌: 6ES7131-6BF00-0CA0

‌Type‌: Digital input module (DI 8x24V DC High Feature)

‌Input Type‌: Sink input (PNP, P-read), compliant with IEC 61131 Type 3

‌Base Unit Compatibility‌: A0 type

‌Color Code‌: CC01

‌Response Time‌: Input delay 0.05–20 ms (adjustable)

‌Diagnostics‌: Supports channel fault detection (short-circuit, open-circuit, power supply voltage, and LED indicators)‌12.

For detailed wiring diagrams or application notes, refer to Hanyite Automation Technology. Let me know if you'd like additional translations or explanations.
