Hanyite Automation Technology not only provides you with the latest sales and low prices of Siemens 6ES7134-7SD00-0AB0, but also looks forward to establishing a long-term and stable cooperative relationship with you. We provide professional technical support and perfect after-sales service to help your business development. Choose Hanyite, welcome to contact us!

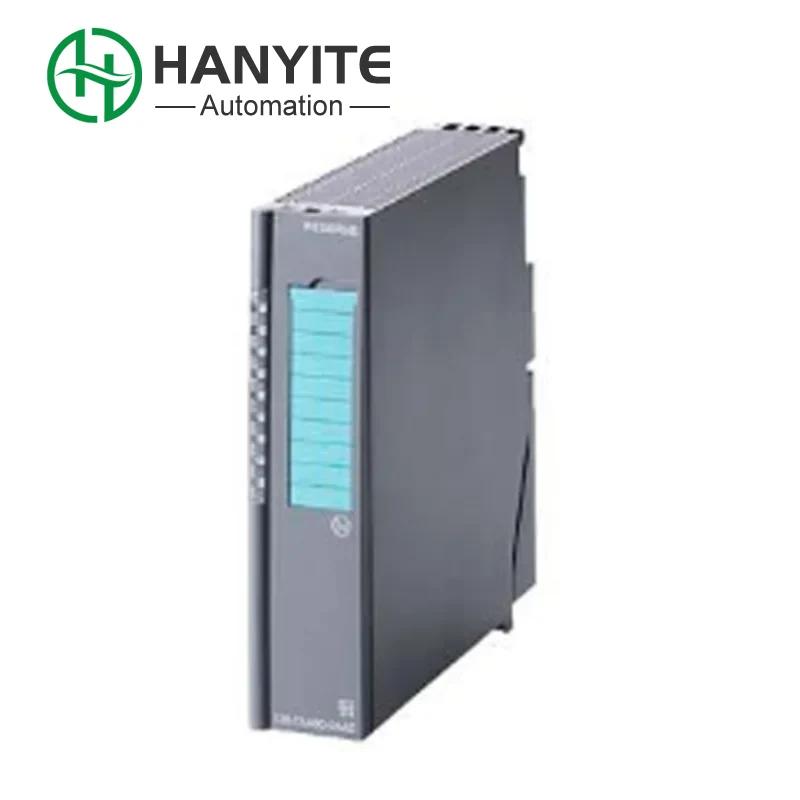

Siemens 6ES7134-7SD00-0AB0 is a modular programmable logic controller (PLC) system of Siemens SIMATIC S7-300 series. It adopts modular design. Users can choose different modules to combine according to specific needs, including power modules, CPU modules, signal modules, communication modules and functional modules.
6ES7134-7SD00-0AB0 mainly realizes the input/output function of digital or analog quantity. It is an important component of industrial automation control system, which can connect field devices (such as sensors, actuators, buttons, indicator lights, etc.) to exchange data with PLC.
|
Article Number |
6ES7134-7SD00-0AB0 |
|
Number of output points |
8 points |
|
Output voltage |
24V DC or AC |
|
Output current (per point) |
Maximum 5A |
|
Output current (total) |
Maximum 8A |
|
Contact material |
AgCdO |
|
Mechanical life (no load) |
≥ 10,000,000 open/close operations |
|
Electrical life (rated load) |
≥ 100,000 open/close operations |
|
Response time (Q4.0) |
Maximum 15 ms (from 0V to 24V) |
|
Dimensions (W x H x D) |
40 mm x 125 mm x 120 mm |
|
Weight |
Approx. 0.15 kg |
|
Power consumption |
Approx. 1.6W |
|
Operating temperature |
0°C to 60°C |
|
Storage temperature |
-40°C to 70°C |
|
Relative humidity |
10% to 95% (No condensation) |
|
Altitude |
Maximum 2000 m |
|
Protection level |
IP20 |
Relay output: Siemens 6ES7134-7SD00-0AB0 connects different load types, including DC and AC loads.
Isolation: Optocoupler isolation is used between channels and between channels and backplane bus, which improves the system's anti-interference ability and safety.
Diagnostic function: 6ES7134-7SD00-0AB0 supports channel-level diagnosis, detects output short circuit, open circuit and other faults, and facilitates troubleshooting and maintenance.
