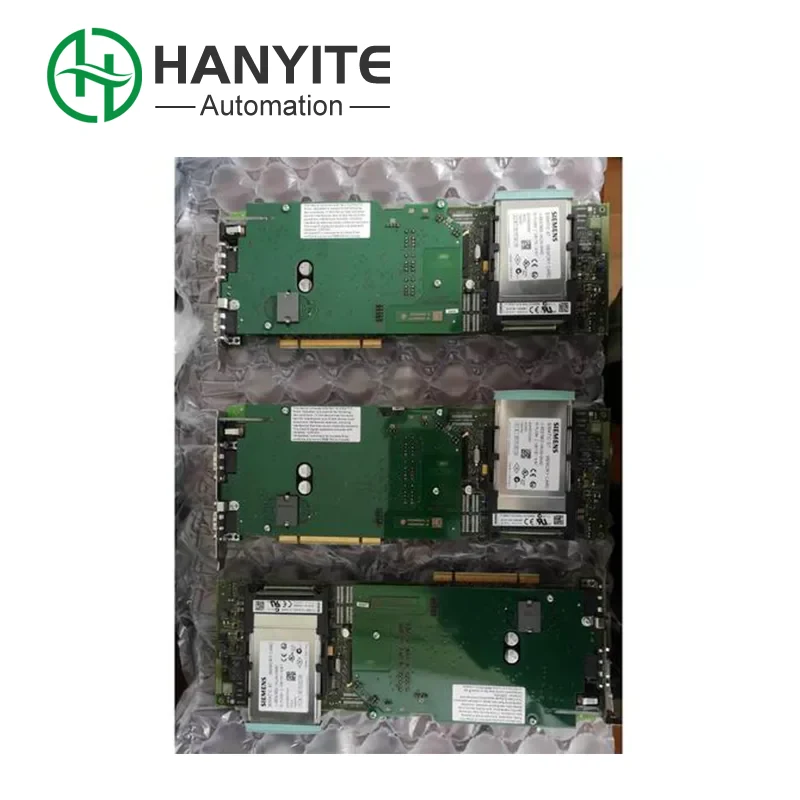

Hanyite Automation Technology, your Siemens automation expert! Our long-term supply of Siemens 6ES7616-2QL10-0AB4 has won the trust and praise of customers for its excellent performance and reliable quality. We maintain a close cooperative relationship with Siemens and can provide you with original products at a very competitive price. We believe that choosing Hanyite Automation Technology is not only choosing a high-quality product, but also choosing a long-term and reliable partner.
Siemens 6ES7616-2QL10-0AB4 is a digital output module with excellent performance. Its biggest advantage is that it uses relay output mode, which can flexibly control various types of loads, including DC loads, AC loads, resistive loads and inductive loads. The 8 output points are divided into 2 groups, 4 points in each group, and the groups are isolated from each other, which effectively prevents potential interference or faults from spreading between different groups, significantly improving the safety and reliability of the system.
In addition, the pluggable screw terminal design is adopted, which greatly facilitates installation, disassembly and wiring, saving valuable maintenance time. With the wide adaptability of relay output, the safety and reliability of group isolation, the convenience of pluggable terminals, and the high quality that meets multiple industrial standards, 6ES7616-2QL10-0AB4 has become an ideal choice in industrial automation control systems, especially for application scenarios that require switching large currents or different voltage types of loads.
|
Type |
6ES7616-2QL10-0AB4 |
|
Rated voltage |
24 V DC |
|
Maximum current per group |
3 A |
|
Maximum leakage current per group |
10 µA |
|
Maximum voltage drop in the on state |
0.6 V |
|
Switching capacity (resistive load) |
24 V DC / 3 A (cos φ = 1) |
|
Switching capacity (inductive load) |
24 V DC / 0.5 A (cos φ = 0.4, L/R = 7 ms) |
|
Mechanical life (no current) |
10,000,000 on/off cycles |
|
Electrical life (rated load) |
100,000 on/off cycles |
|
Contact material |
Silver cadmium oxide (AgCdO) |
|
Channel-to-channel isolation |
No |
|
Base-to-group isolation |
Yes (isolation between two groups) |
|
Isolated from backplane bus |
Yes |
|
Connection type |
Pluggable screw terminals |
|
Terminal type |
2 rails (2-conductor) |
|
Terminal cross section |
0.2 mm² … 2.5 mm² (AWG 24 … 12) |
|
Front |
IP20 |
|
Rear |
IP00 |
|
Operating temperature |
0 °C to 60 °C |
|
Storage temperature |
-40 °C to 70 °C |
|
Relative humidity |
25 to 70 % (non-condensing) |
|
Pollution degree |
2 |
|
Altitude |
2000 m (according to IEC 61131-2) |
